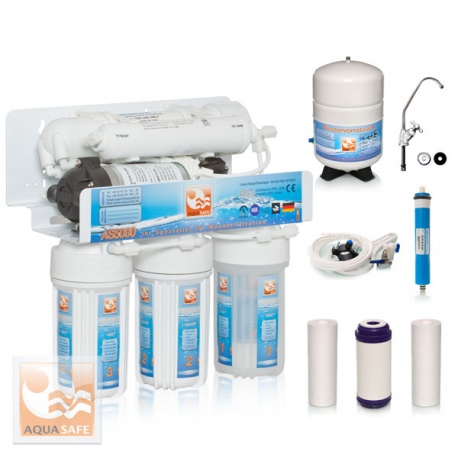

AS5000-DP 5 stage unit with Booster pump

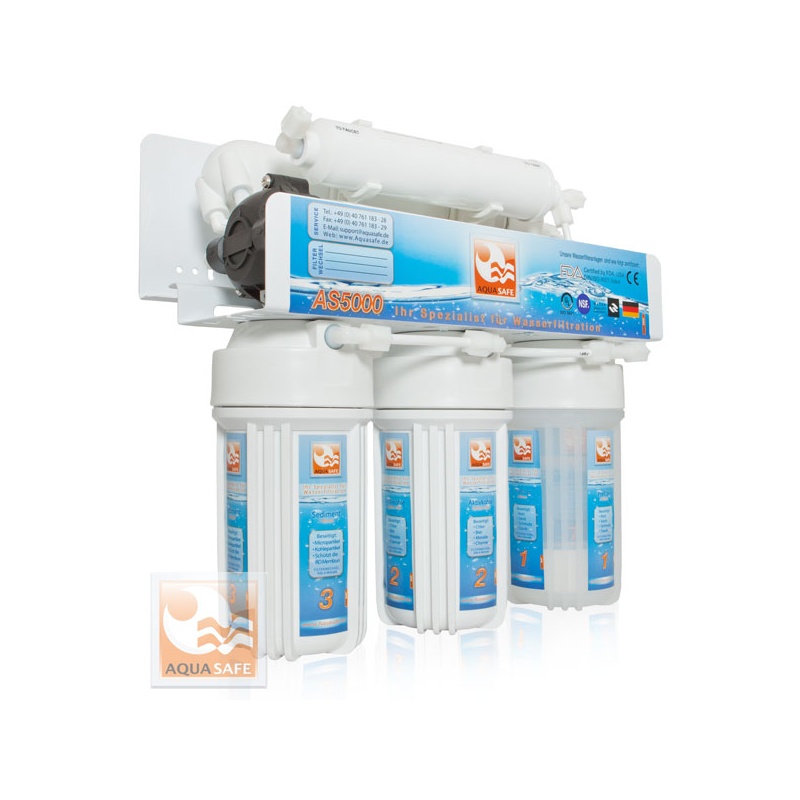

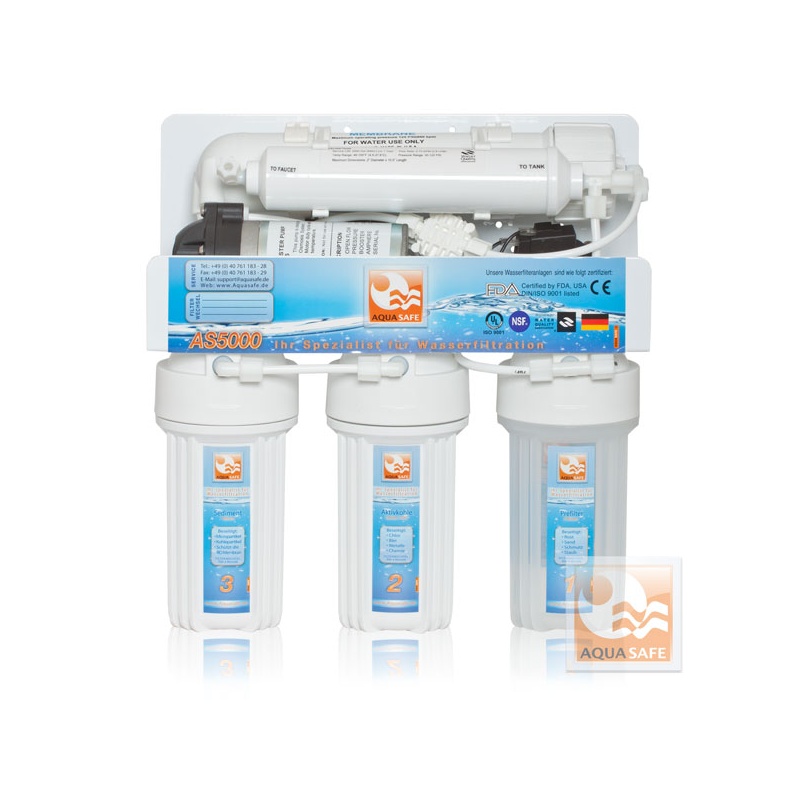

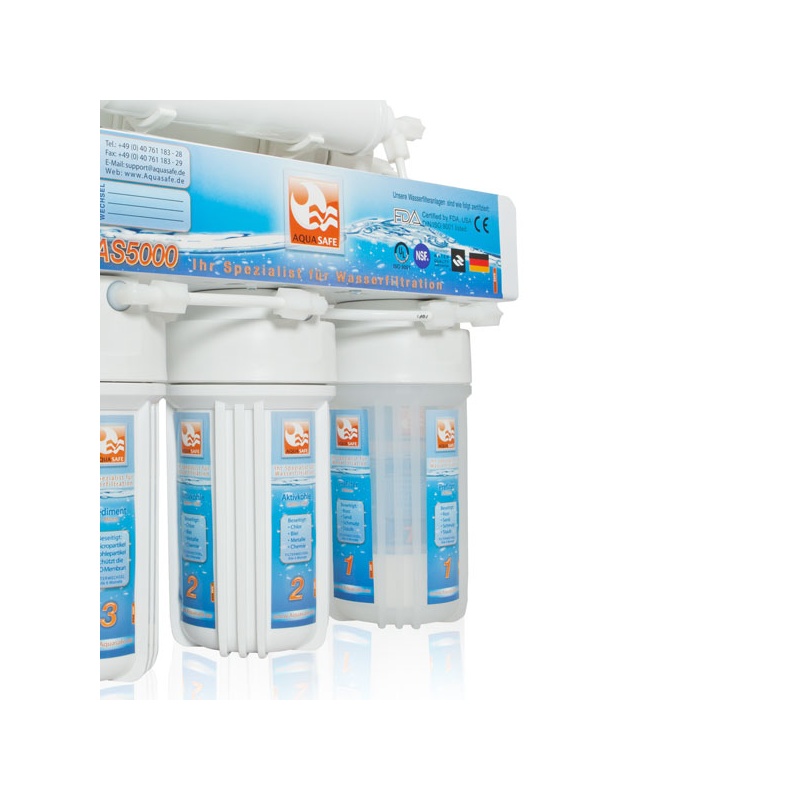

THE NEW AQUA SAFE AS5000 5-stage reverse osmosis system

Special Deal! Only 30 units for special introductory price!

MSRP 299.90 EUR!

AS5000 - Booster

The latest generation of water filtration!
Your advantages at a glance:

    Professional reverse osmosis unit
    Enormous pressure performance
    Improved filtration rate
    Optimum water supply
    The RO membrane provides enhanced performance.
    More security! - Stable housing is pressure to 30 bar! (TUV *)
    Double O-rings - double hold stable, thanks to double-seal!
    NSF, ISO, CE certified.
    Best membranes Technology - AQUA SAFE membrane with high values ​​TOP
    190/Liter daily output - system can be upgraded to double the amount!
    High-quality activated carbon post-filter

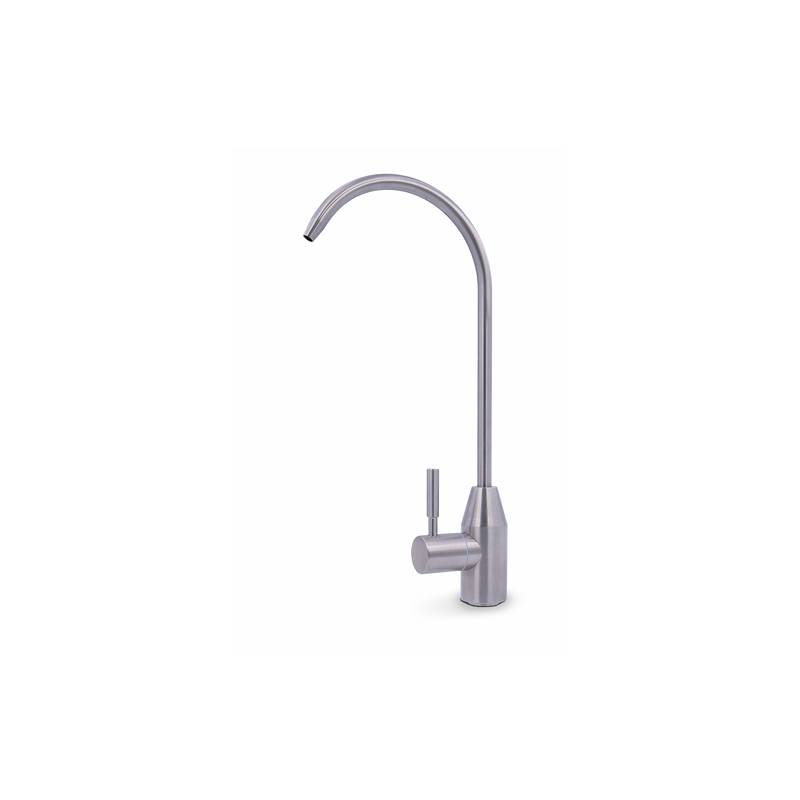

    Noble turning luxury faucet in chrome look
    Improved filter (high quality granular activated carbon)
    Food-safe housing structure - All Natural Materials
    Reinforced mounting clips
    No release of contaminants to the water!
    Solid construction - unlike traditional eBay vendors advertise cheap plastic.
    Very stable membrane housing - Made in the U.S.A.
    Integrated check valve in the diaphragm housing!
    Elevated metal frame - protects your investment
    8 liter tank - thus faster production faster osmosis fresh water.
    Storage tank made of food grade materials.
    Space saving and very compact
    Low filter costs - your wallet will thank you for the next filter change!

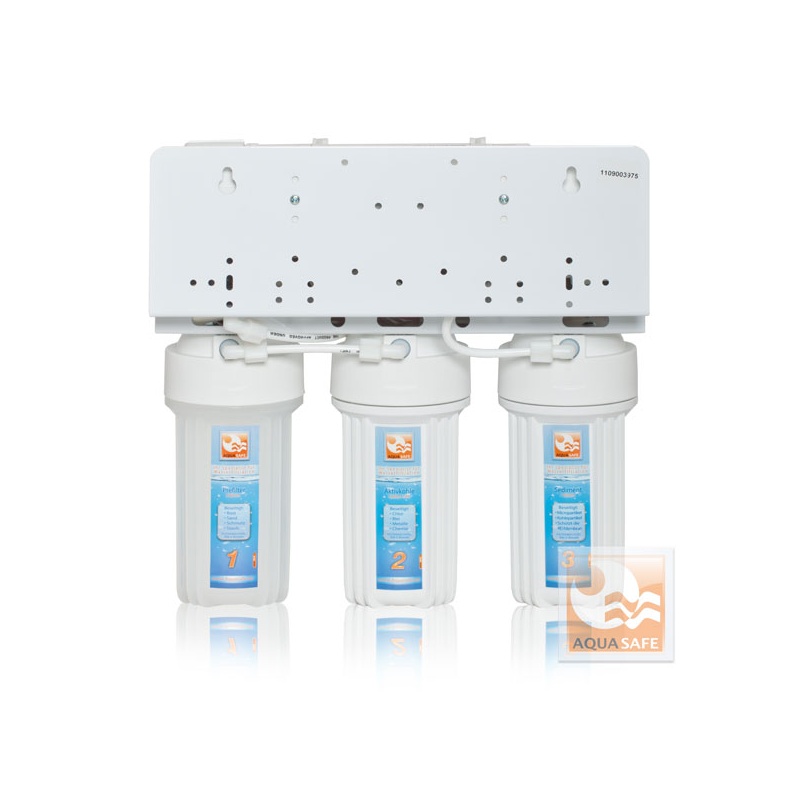

    Metal frame with handle on back - fast and easy to change filters.
    Sturdy case opener included!


AS5000 - Booster
Technical data:
Maximum pressure: 30 bar
Max temperature: 65o degrees
Certified to NSF, ISO, CE, TUV *
Size: W: 35cm, H: ca.40cm, T: 14.5 cm
Tank: H: 34cm, diameter 22cm



Loupe clean and crystal clear - water purification by reverse osmosis

Who would not like to mention a sparkling its own source, which provides pure drinking water every day? Like a mountain stream offers refreshment pure, so reliably provides you our reverse osmosis system at any time with healthy water. The secret lies in the natural process of osmosis. By fine membrane technology smallest dirt particles and microscopic impurities are filtered without exception. This makes it possible to combine health benefits with fresh taste.

Drinking pleasure, thanks to sophisticated treatment

The AS5000 is the latest generation of reverse osmosis plant. A high-quality water filter design with quality components and sophisticated functionality ensures that over many years of healthy water is available - completely free of debris. The natural osmosis filtration process is extremely energy efficient, because only an increased water pressure (at least 3 bar) must be generated. If a booster pump may be required AQUASAFE has obvious right solutions and other accessories in the range - at competitive prices!

The complete solution!
Our facility offers a complete solution for virtually all water contaminants. There are all foreign materials are filtered up to 99%: heavy metals, pesticides, fungicides, nitrate, phosphate, chloride, radioactive isotopes, viruses, bacteria, asbestos, limestone, etc. further be given any foreign substances to the water.



The AS5000 is painstakingly handcrafted by skilled workers built together for you, because we make sure that your system works properly.

First Prefilter:
The prefilter is because of its coarse micron count (5Mic) in the first Level used. It is used for coarse filtration and filters rust particles, sand, water pollution and dust.

Material:
This prefilter is made entirely of polypropylene and is shaped as a cylinder.

Technical data:
Function: Pre-filter stage 1
Max Pressure: 9 bar
Max temperature: 65o degrees
Life: 6-12 months
____________________________________________________________________

Second GAC carbon filter: The charcoal filter is made of activated carbon granules and in the 2-stage pre-filter is used. The GAC filter filters in particular chlorine, pesticides, metals, and ozone from the water.

The filter cartridge includes a high quality granular activated carbon and mixture is kept in a polyethylene cylinder shape. In addition, at the top and at the lower end of two filter sponges attached to the lid, they prevent the escape of the coal blend.

Materials: The granular activated carbon filter is made of high quality activated carbon mixture.

Technical data:
Function: Pre-filter stage 2
Max Pressure: 9 bar
Max temperature: 65o degrees
Life: 6-12 months
_____________________________________________________________________

Third Sediment:
The sediment filter is due to its finer micron count (1Mic) in the third Level used. It is used for secondary filtration and filters remaining coal particles, rust particles, coarse sand and water pollution in a finer micron count.

Material:
This sediment filter is made entirely of polypropylene and is shaped as a cylinder.

Technical data:
Function: Pre-filter stage 3
Max Pressure: 9 bar
Max temperature: 65o degrees
Life: 6-12 months
_____________________________________________________________________

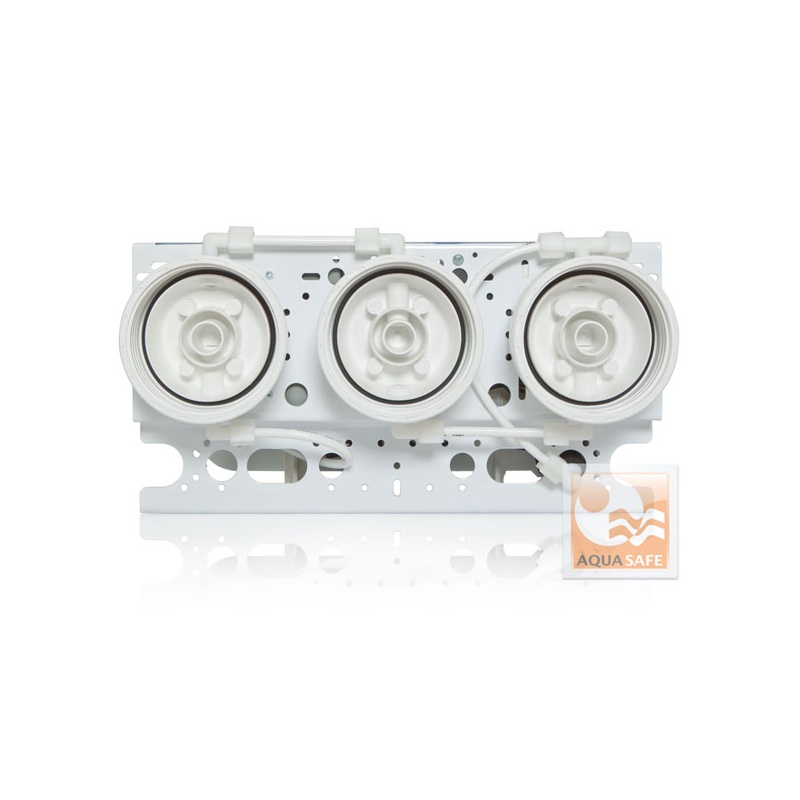

Double O-rings *:
With help from TÜV Nord and the quality management of ISO, it is us together managed to develop a case that only begins to tear at 30 Bar! Conventional housing does not even keep from 10 bar. Another decisive advantage over conventional housings is the food-safe material structure. There were, it did set a special attention, using only food grade materials. There are yet no foreign substances. The tightness is assured with the help of two seals, both at the top of the element as are also built on the housing itself.

__________________________________________________________________



8 liters of water storage tank:
Our newly developed membrane tank is manufactured from food grade materials. So fresh filtered osmosis water is retained longer than traditional water tanks for freshness. With the new tank AQUASAFE we create an optimal mix of freshness, quality and quantity! Another plus is the separation of the individual chambers, so the filtered water in a food-safe membrane stored in the tank and is therefore safe. By a smaller tank capacity, your system is capable of quickly producing fresh water to osmosis.

__________________________________________________________________

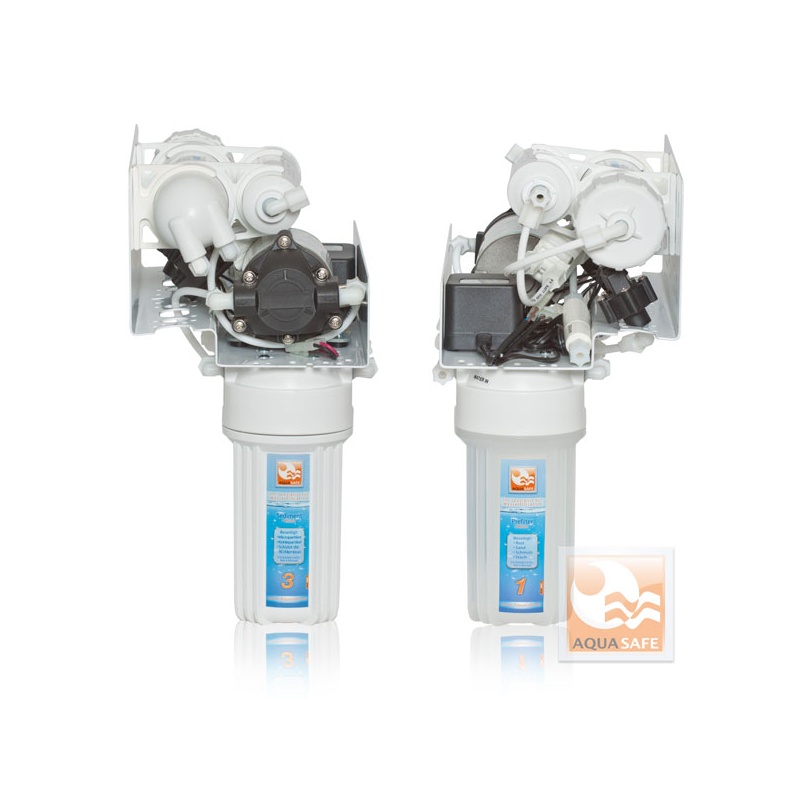

Booster pump (booster pump):
Advantages of the booster pump
If the tap water pressure drops below 3 bar, is a good performance of a reverse osmosis plant is no longer possible. Also, the water quality deteriorates rapidly at low pressure. The low-voltage booster pump inlet pressure increases by about 6 bar (30-liter-per-day plant) up to 3 bar (at 160 liters-per-day plant). Quantity and quality of water produced is significantly improved. The RO membrane will clog additionally protected by the increased pressure in front.

Technical data:
VDC: 24V / 1.2 A
MAX. PSI: 110
MAX. Amount of water: 1.35 Ltr
RO membranes: up 75GPD
With transformer
Power consumption:

 __________________________________________________________________

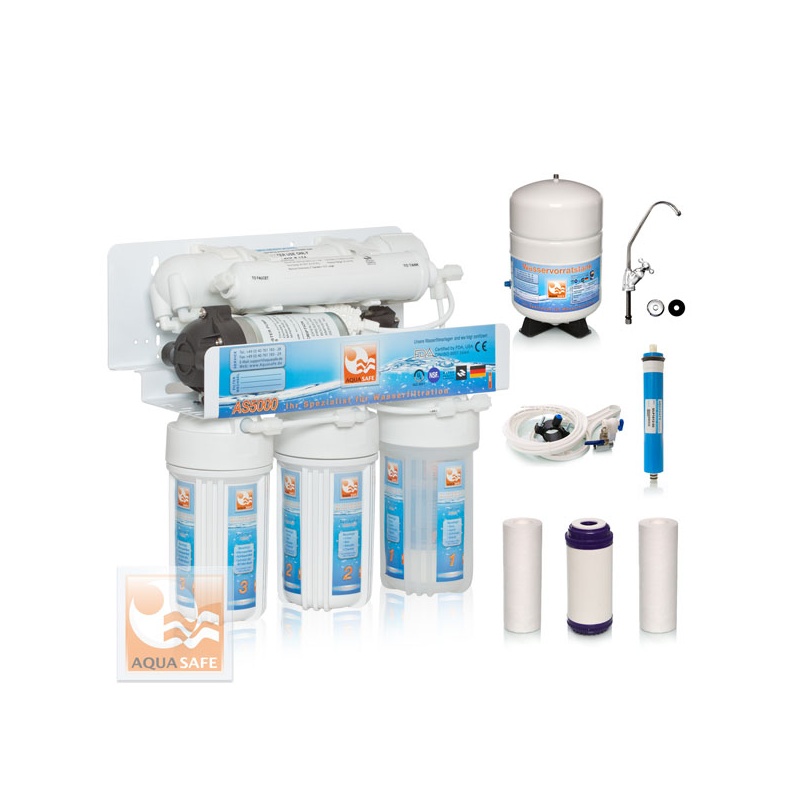

Your delivery:

    AS5000 5-stage reverse osmosis system
    1,35 booster pump with high / low pressure switch
    Transformer (50 Watt/h)
    1 x 5 micron pre-filter (first stage)
    1 GAC carbon filters (second stage)
    1 x 1 micron sediment filter (third stage)
    1 x AQUASAFE high-performance membrane 50 GPD
    1 x inline activated carbon post-filter (Post Carbon) - taste and odor filter
    Luxury swivel faucet in chrome look
    8 liters of storage tank
    Long pigtails in white (NSF)
    Montage-/Anschlusszubehör (Complete with high-quality cold-water drain clamp connector)
    Pre-filter housing wrench (solid type)
    Extensive manual in German




Matching filter: AS5-FP1, FP2-AS5, AS5-FW1, FW2-AS5 ...

We recommend the filter change:

The pre-filter, every 6 months.

The post-filter, every 6 months.

The additional filter every 12 months.

The membrane every 2 years.
